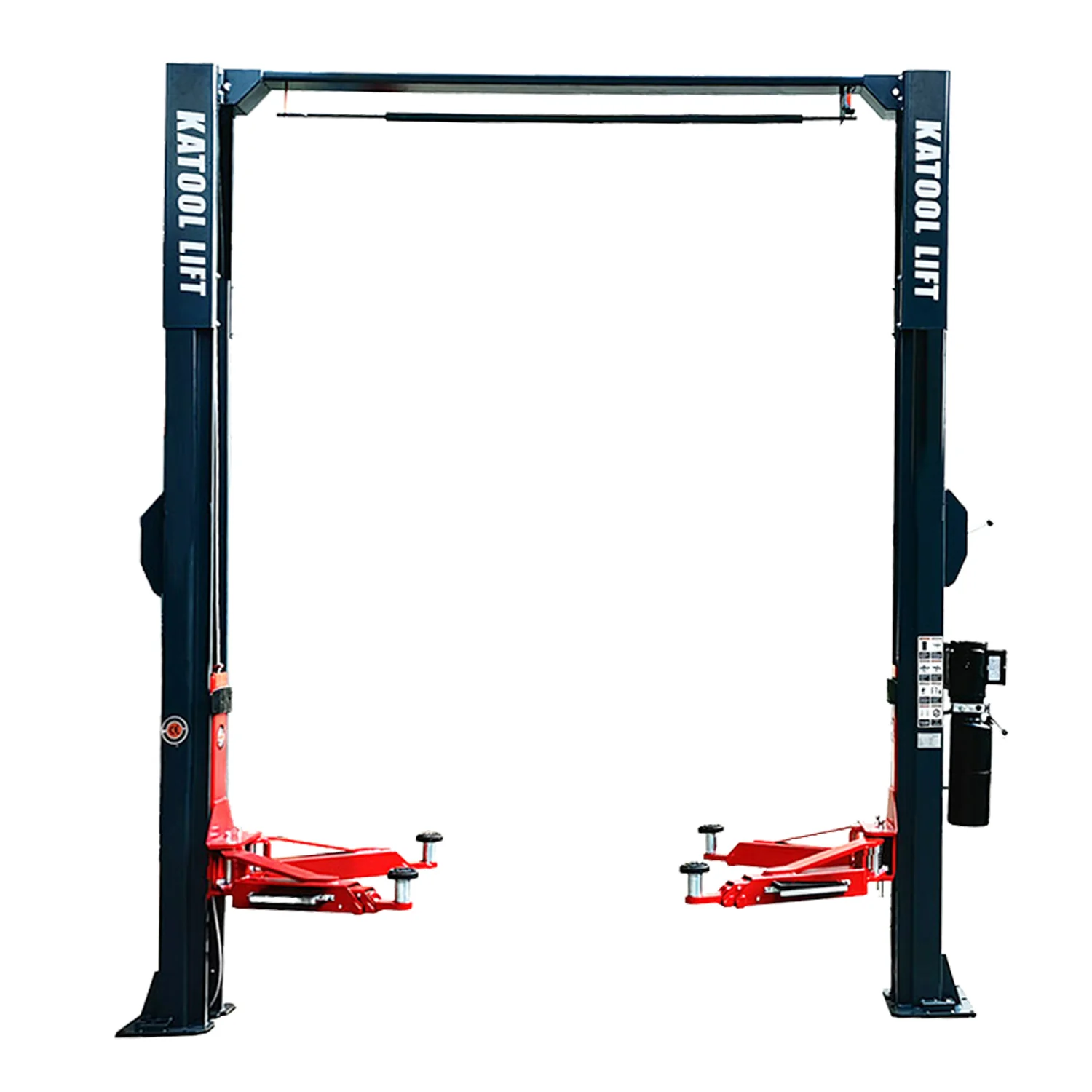

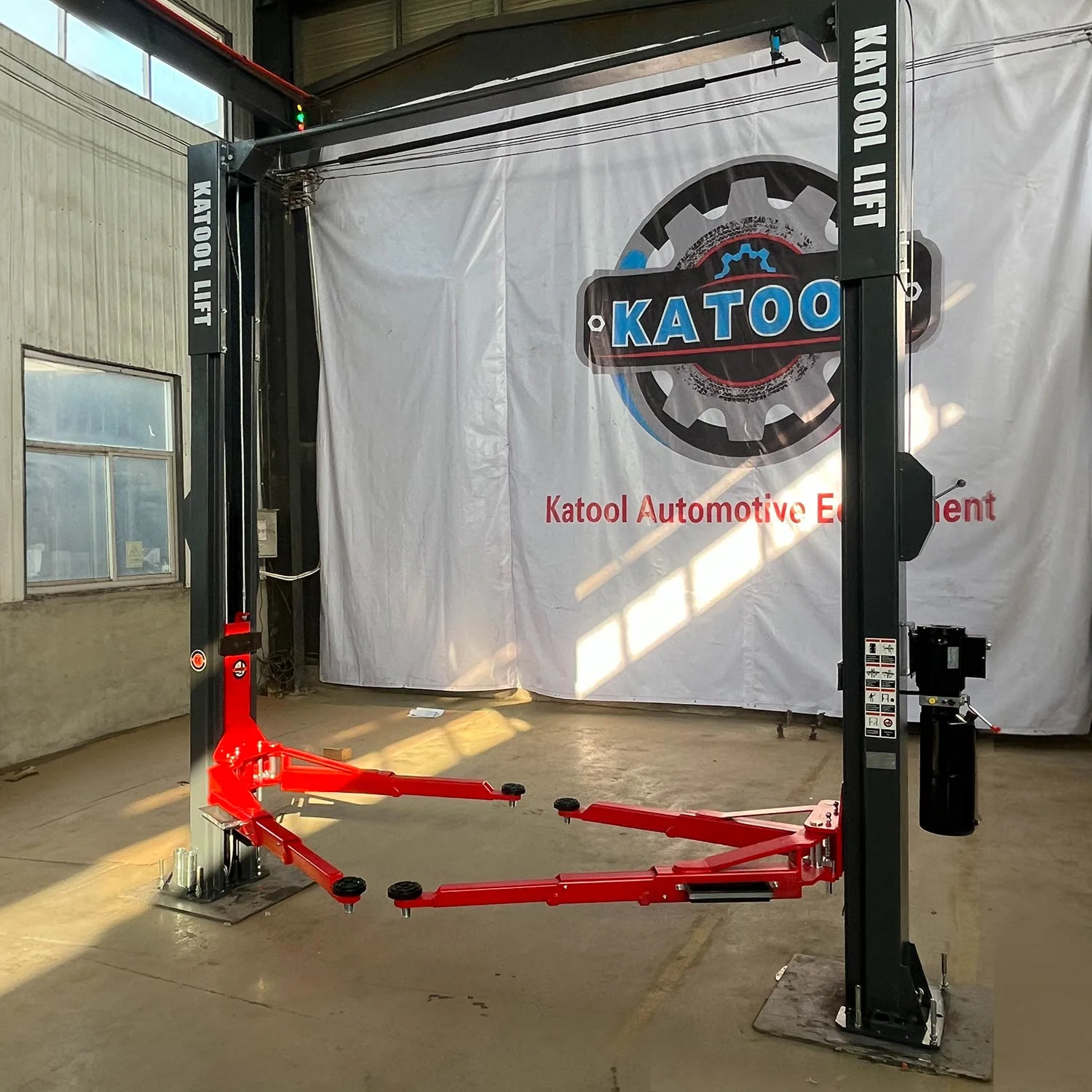

KT-AS110D 11,000 Lbs Asymmetrical 2 Post Car Lift
Introducing the KT-AS110D Two Post Asymmetrical Vehicle Lift, a powerhouse designed for automotive excellence. With an 11,000lbs capacity and Single Point Lock Release, it effortlessly handles diverse vehicles. Featuring Direct Drive Cylinders for robust lifting power, its single-sided unlock streamlines operation. Ideal for professional garages and dedicated DIY enthusiasts, the KT-AS110D excels in scenarios like comprehensive repairs and routine maintenance. This lift offers unmatched efficiency with its user-friendly design, ensuring precision and safety in every elevation. Elevate your automotive workspace with the reliability and innovation of the KT-AS110D for an unparalleled lifting experience.
User Manual
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

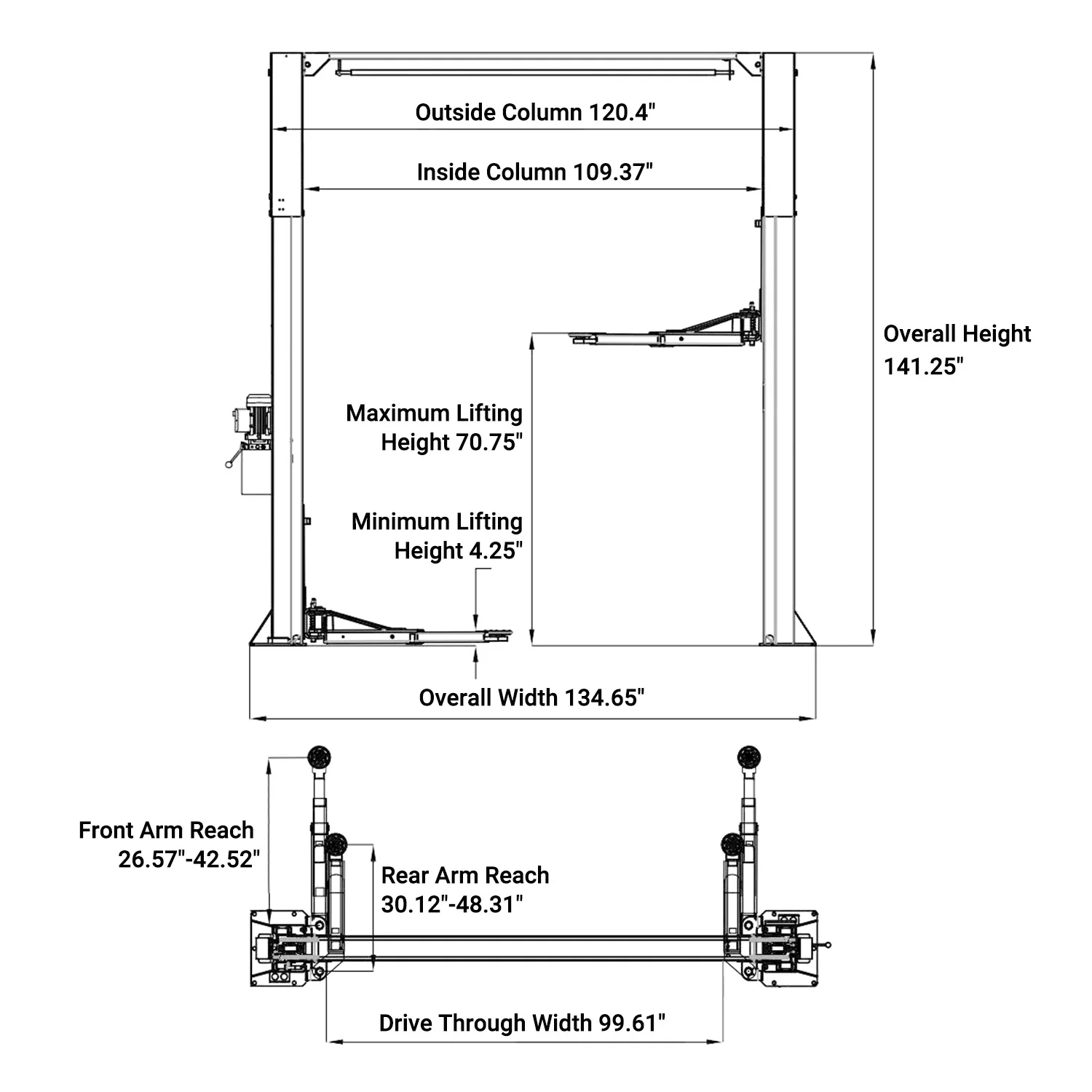

Specifications
| Dimension(LxWxH) | |
| Net weight | 1323 lbs |
| Lifting Capacity | 11000lbs/4990KG |
| Max. Lifting Height | 70.75" / 1800mm |
| Min. Height | 3.74" / 95mm |
| Height Overall | 141.25" / 3587mm |
| Width Overall | 134.65" / 3420mm |
| Outside Column | 120.4" / 3058mm |
| Inside Column | 109.37" / 2778mm |
| Drive-Thru Clearance | 99.61" / 2530mm |
| Motor | 220VAC/60HZ/1PH |
Feature
- 11000 lbs (4990 KG) lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

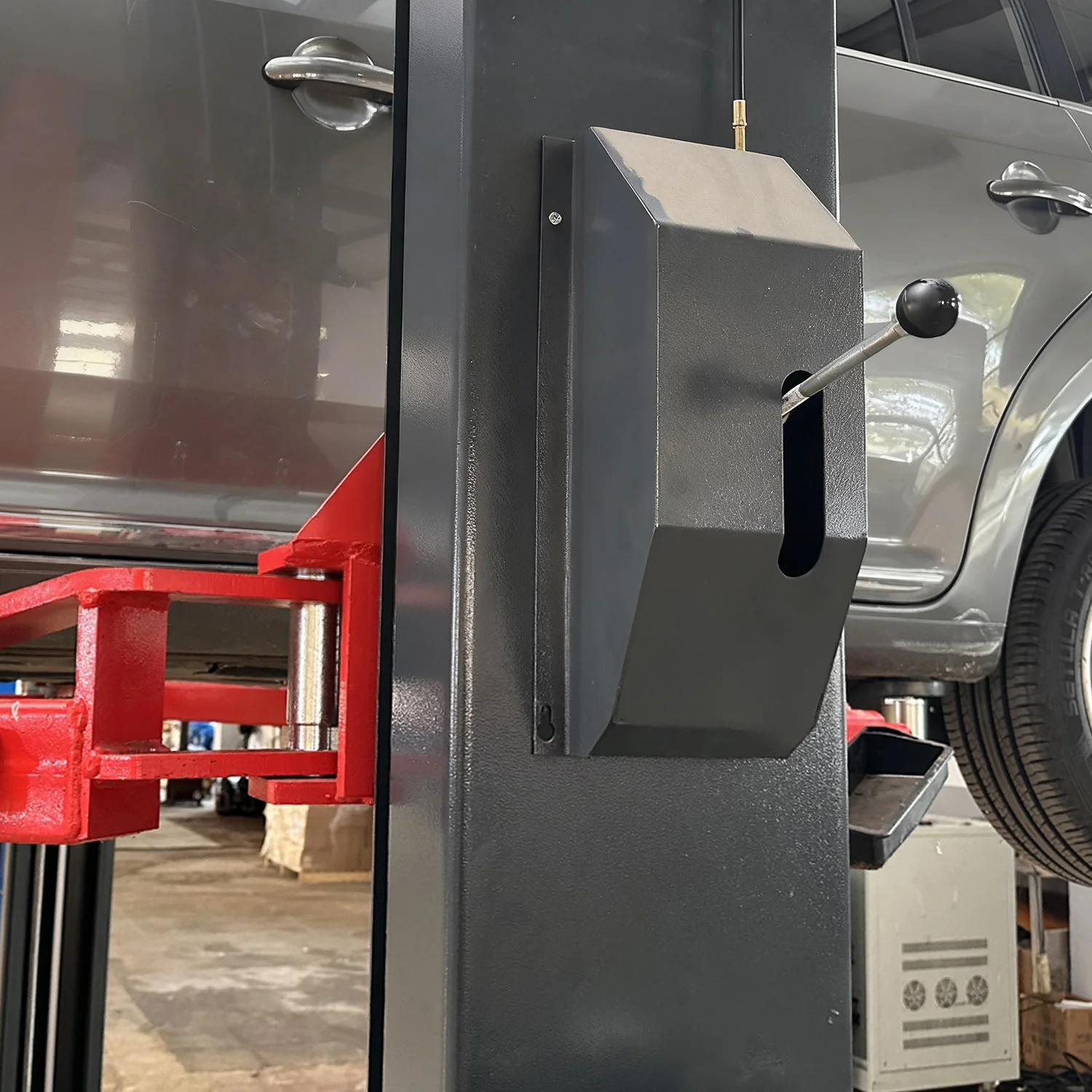

- Single Point Lock Release.

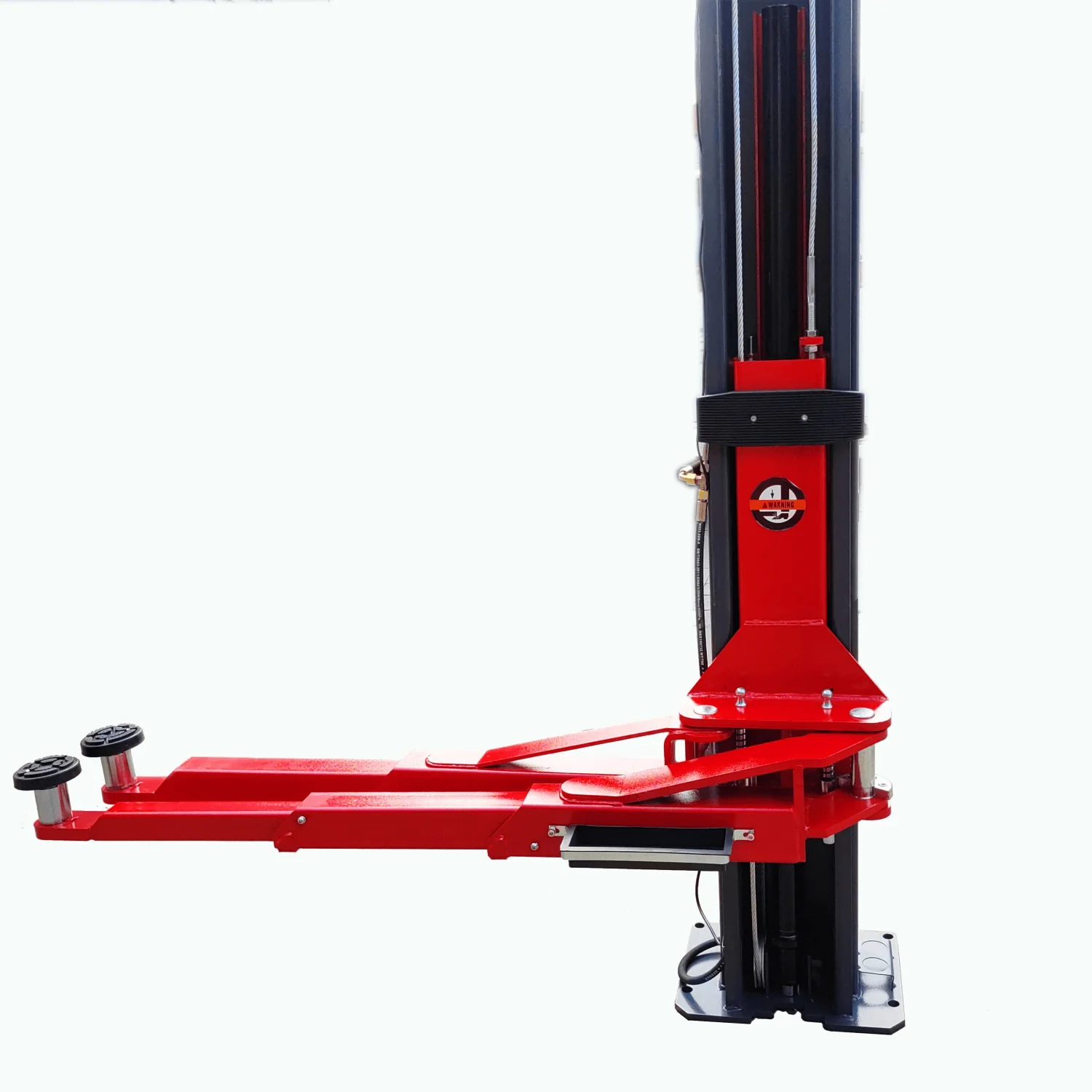

- Asymmetric arms.
- Direct Drive Cylinders.
- Rubber pad door opening protection.

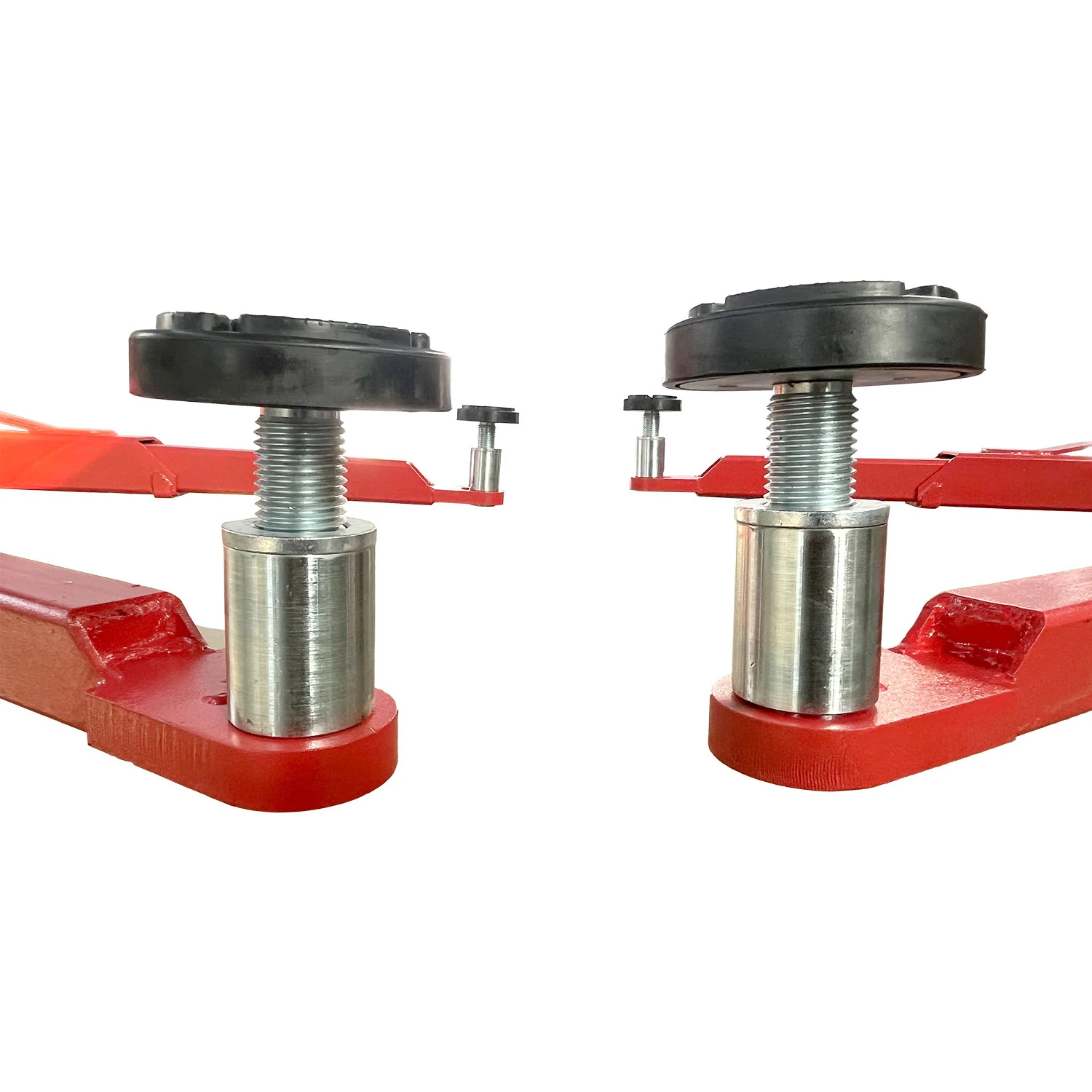

- Comes with adjustable extended support adaptor sets that range from 3.94 inches to 6 inches.
- Overhead safety shutoff bar.
- Feet-protection safety guardrails with toolbox.
- High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional).
Package Size
- LxWxH (inch): 112"x18"x36"
- Weight (lb): 1350
- A forklift or equivalent is required for unloading
